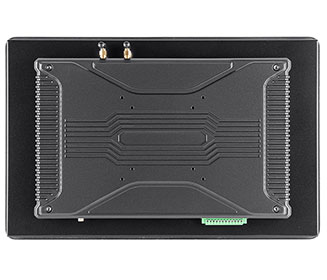

15.6" Panel-PC Series-2A1
Intel® Celeron® J4125
15.6" TFT-LCD, 1920 x 1080
Projected-capacitive, resistive or without touch
Prozessor: Intel® Celeron® J4125
IP65 die-cast aluminum housing
- 15.6" TFT-LCD, 1920 x 1080 pixels
- Processor: Intel® Celeron® J4125
- Die-cast aluminium housing
- Flush frame design, IP65 on the front
- Fanless cooling system
Wachendorff Panel-PC Series-2
The Wachendorff Panel-PC Series-2 are available in display sizes ranging from 10“ to 21.5” and can be equipped with projected capacitive, resistive or no touch. The projected capacitive touch display enables multi-touch operation with an appropriate operating system. If pressure-sensitive operation is required (e.g. with gloves), the resistive touch is the right choice. You can choose from a variety of different processors, from the energy-efficient Intel® Celeron® J4125 to a 12th generation Intel® CoreTM i7. Integrate up to 64 GB of RAM to meet the most demanding requirements. Particularly noteworthy is the especially narrow display edge, which enables an almost frameless design. The housings are IP65 rated at the front and have a very compact and robust design thanks to the specially constructed aluminum housing. The unique fanless thermal design of the die-cast aluminum housing enables effective temperature control.
Power supply:
Hollow connector 5.5 x 2.5 mm: 12 VDC to 36 VDC
Screw terminal: 12 VDC to 36 VDC
Power consumption:
Typical power consumption: 18 W
Maximum power consumption: 70 W
Display:
15.6" TFT-LCD
Resolution:
1920 x 1080 Pixel
Aspect ratio:
16:9
Brightness:
300 cd/m²
Colours:
16.7 M.
Reading angle:
85/85/85/85 (L/R/U/D)
Touchscreen:
- Projected capacitive touch
- Resistive touch
- without touch
Glas hardness:
- 6H Projected capacitive touch
- 3H Resistive touch
- 7H without touch
Processor:
Intel® Celeron® J4125 (2.70 GHz)
RAM:
Max. 8GB
SSD/HDD:
Max. 1 TB
I/O-ports:
USB: 2 x USB 2.0 type A, 2 x USB 3.0 type A
6-pin screw terminal: 2x RS-232 (up to 12 inches)
12-pin screw terminal: 2x RS-232, 1x RS-485, 3x GPIO (from 15 inches)
Ethernet: 2x RJ-45 Gigabit Ethernet, galvanically isolated
Display: 1x HDMI, 1x VGA
Audio: 1x audio out, 3.5 mm jack
Sim Card Slot: Standard SIM (standard without function)
WLAN: 1x 802.11 abgn/ac/d/e/i/h/w
Bluetooth: 1x Bluetooth 4.0
Expansion slots:
None
Housing:
Die-cast aluminium housing
Mounting:
VESA 75 x 75, VESA 100 x 100
Panel mount
Protection class:
IP65 on the front
Dimensions (WxHxD):
406 mm x 260 mm x 67,5 mm
Weight:
Approx. 4 kg
Certification:
CE, RoHS, FCC, REACH
Environmental conditions:
Operation: -10 °C to +60 °C, -20 °C to +70 °C (optionally customizable)
Storage: -20 °C to +70°C
95%, non-condensing
Operating system:
Windows® 10 IoT
Windows® 11 IoT
Linux
Options:
LTE
Packing list:
1 x device
1 x Mounting material
Tariff number:
8471 41 00
Manufacturer:
Wachendorff Prozesstechnik GmbH & Co. KG
| Article no. | Article description |
|---|---|
| PPC005-156A1 | 15.6 inch Industrial Panel PC Series-2A1, aluminium housing, Intel Celeron J4125 |
| Accessories | |
| PPC-PWRADAP_01_24VDC2.5A | External power supply unit for Celeron und Intel Core 6./7. Gen. Panel-PC, 230VAC to 24VDC with hollow connector and C14 plug |
| PPC-PWRCRD_01 | Mains cable / connection cable E+F CEE 7/7 to C13 1.5 m |
| PPC-Stand_01 | Industrial monitor/display stand, VESA 100x100, black |
| PPC-Stand_02 | Industrial monitor/display stand, VESA 100x100, silver |
| PPC-WALL-VESA-01 | VESA wall mount metal, 75 x 75, 100 x100, black, including screw accessory pack |
