11.6" Industrial display
11.6" TFT-LCD, 1920 x 1080 pixels
resistiv touch
IP65, die-cast aluminium housing
- 11.6" brilliant TFT-LCD graphic display,

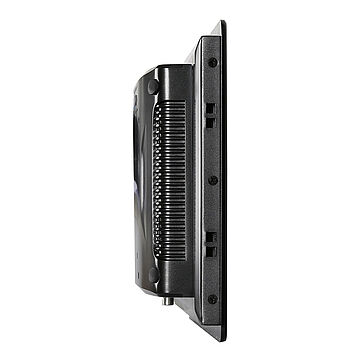

1920 x 1080 pixels - Die-cast aluminium housing, low installation depth
- Flush frame design, IP65 on the front

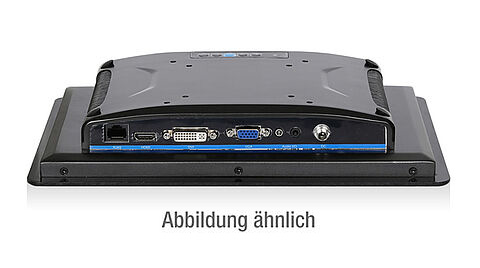

- HDMI, DVI and VGA interfaces
The Series 1 industrial displays are available in sizes from 10.1" to 23.8" and can be equipped with projected capacitive, resistive or no touchscreen. Particularly noteworthy is the front frame, which is only 3 mm thick, allowing almost flush mounting in the panel cut-out.
The housings are IP65 rated on the front and have a very compact and robust design thanks to the specially designed aluminium housing. The low installation depth means that the displays can be used almost anywhere.
Power supply:
12 VDC to 36 VDC
Power consumption:
Typical power consumption: 18 W
Maximum power consumption: 48 W
Display:
11.6" TFT-LCD
Aspect ratio:
1920 x 1080 pixels
Brightness:
300 cd/m²
900 cd/m² (High Brightness)
Colours:
16.7 M.
Reading angle:
85/85/85/85 (L/R/U/D)
Touchscreen:
Capacitive touch
Glas hardness:
6H Capacitive touch
I/O-ports:
USB: RJ45-USB for Touch
Display: 1x HDMI, 1x DVI, 1x VGA
Audio: 3.5 mm jack
Housing:
Die-cast aluminium housing
Mounting:
VESA 75 x 75, VESA 100 x 100
Panel mount
Protection class:
IP65 on the front
Weight:
Approx. 2.0 kg
Dimensions (WxHxD):
323.7 mm x 218.5 mm x 51.5 mm
Environmental conditions:
Operation: -10 °C to +60 °C
Optional WT: -20 °C to +70 °C
High Brightness: -20 ℃ to +70 ℃
Storage: -20 °C to +70 °C
95 %, non-condensing
Certifications:
CE
FCC Class A
CCC
Packing list:
1x device
1x mounting material
1x RJ-45 to USB cable
1x VGA cable
Tariff number:
85285210
Manufacturer:
Wachendorff Prozesstechnik
| Article no. | Article description |
|---|---|
| DPL002-116R002P | 11.6 inch industrial display |
| Accessories | |
| PPC-PWRCRD_01 | Mains cable / connection cable E+F CEE 7/7 to C13 1.5 m |
| DPL-PWRADAP_24VDC1.5A | External power supply unit for display, 230 VAC to 24 VDC with hollow connector and C14 plug |
| PPC-TOUCH-RJ-USB | Touch cable RJ-45 to USB type-A 1.5 m |
| PPC-WALL-VESA-01 | VESA wall mount metal, 75 x 75, 100 x100, black, including screw accessory pack |
| PPC-Stand_01 | Industrial monitor/display stand, VESA 100x100, black |
| PPC-Stand_02 | Industrial monitor/display stand, VESA 100x100, silver |
