Power supply:

Hollow connector 5.5 x 2.5 mm: 12 VDC to 36 VDC
2 pin connector: 12 VDC to 36 VDC

Power consumption:

Typical power consumption: 18 W
Maximum power consumption: 48 W

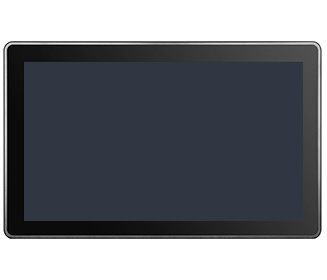

Display:

17.3" TFT-LCD

Resolution:

1920 x 1080 pixels

Aspect ratio:

16:9

Brightness:

300 cd/m²
1000 cd/m² (High Brightness)

Colours:

16.7 M.

Viewing angle:

80/80/60/80(L/R/U/D)

Touchscreen:

resistive touch

Glas hardness:

3H

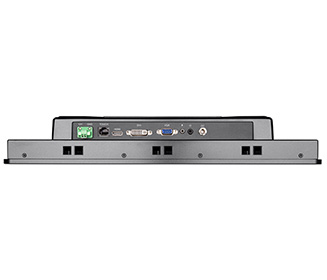

I/O-ports:

USB: RJ45-USB for Touch
Display: 1x HDMI, 1x DVI, 1x VGA
Audio: 3.5 mm jack

Housing:

Die-cast aluminium housing

Mounting:

VESA 75 x 75, VESA 100 x 100
Panel mount

Protection class:

IP65 at the front

Weight:

Approx. 4.8 kg

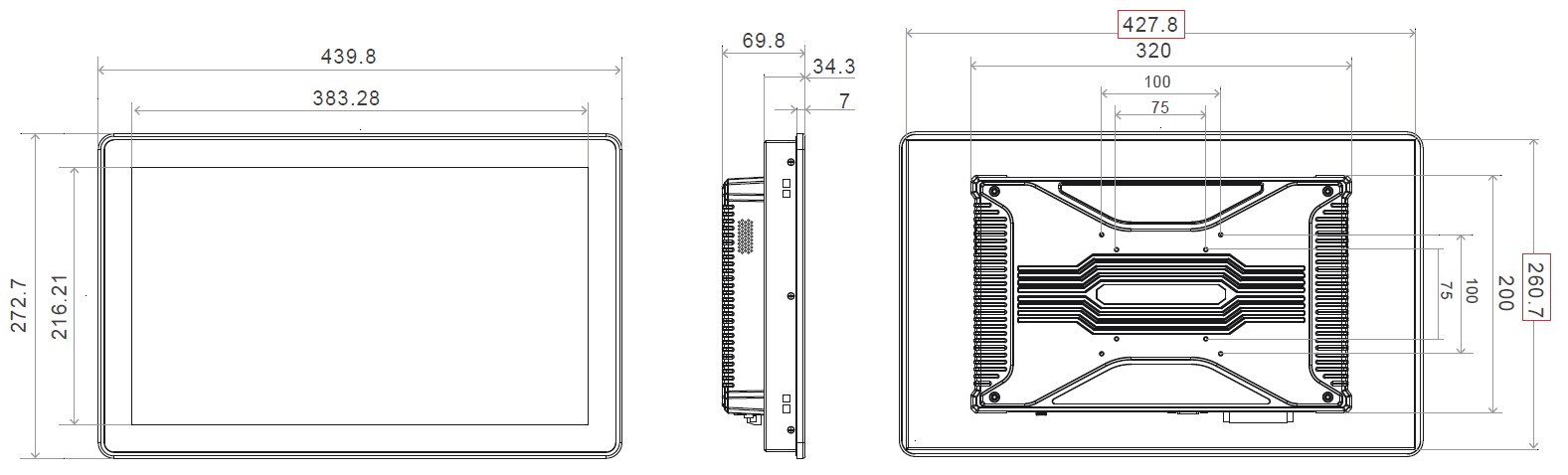

Dimensions (WxHxD):

439,8 mm x 272.7 mm x 69,8 mm

Environmental conditions:

Operation: -10 °C to +60 °C
Optional WT: -20 °C to +70 °C
High Brightness: 0 ℃ to +70 ℃
Storage: -20 °C to +70 °C
95 %, non-condensing

Certifications:

CE
FCC Class A
CCC

Packing list:

1x device
1x mounting material
1x RJ-45 to USB cable
1x VGA cable

Tariff number:

85285210

Manufacturer:

Wachendorff Prozesstechnik
