11.6" Panel-PC Series-1A1
Intel® Celeron® J4125
11.6" TFT-LCD, 1920 x 1080 pixels
Projected capacitive, resistive or without touch
Processor: Intel® Celeron® J4125
IP65 die-cast aluminium housing
- 11.6" TFT-LCD, 1920 x 1080 pixels
- Processor: Intel® Celeron® J4125
- Die-cast aluminium housing
- Flush frame design, IP65 on the front
- Fanless cooling system
The industrial panel PCs of the WACHENDORFF Series-1 are available in display sizes from 10" to 23.8", optionally equipped with projected capacitive, resistive or no touch. The projected capacitive touch enables multi-touch operation with an appropriate operating system. If pressure-sensitive operation is required (e.g. with gloves), the resistive touch is the right choice. A variety of different processors are available, from the energy-efficient Intel® Celeron® J4125 to a 10th generation Intel® CoreTM i7. Integrate up to 64 GB of RAM to meet the most demanding requirements. The front panels are absolutely flush with the die-cast aluminium housing. The housing is IP65 rated. The unique fanless thermal design of the die-cast aluminium housing enables effective temperature control.
Power supply:
Hollow connector 5.5 x 2.5 mm: 12 VDC to 36 VDC
2 pin connector: 12 VDC to 36 VDC
Power consumption:
max. 70W
Display:
11.6" TFT-LCD
Resolution:
1920 x 1080 pixels
Aspect ratio:
16:9
Brightness:
300 cd/m²
Colours:
16.7 M.
Reading angle:
85/85/85/85 (L/R/U/D)
Touchscreen:
- Projected capacitive touch
- Resistive touch
- without touch
Glas hardness:
- 6H Projected capacitive touch
- 3H Resistive touch
- 7H without touch
Processor:
Intel® Celeron® J4125 (2.70 GHz)
RAM:
Max. 8GB DDR4
SSD/HDD:
Max. 1 TB
I/O-ports:
USB: 2 x USB 2.0 type A, 2 x USB 3.0 type A
Serial: 2x RS-232 DB-9
Ethernet: 2x RJ-45 Gigabit Ethernet, galvanically isolated
Display: 1x HDMI, 1x VGA
Audio: 1x audio out, 3.5 mm jack
Sim Card Slot: Standard SIM (standard without function)
WLAN: 1x 802.11 abgn/ac/d/e/i/h/w
Bluetooth: 1x Bluetooth 4.0
Expansion slots:
None
Housing:
Die-cast aluminium housing
Mounting:
VESA 75 x 75, VESA 100 x 100
Panel mount
Protection class:
IP65 on the front

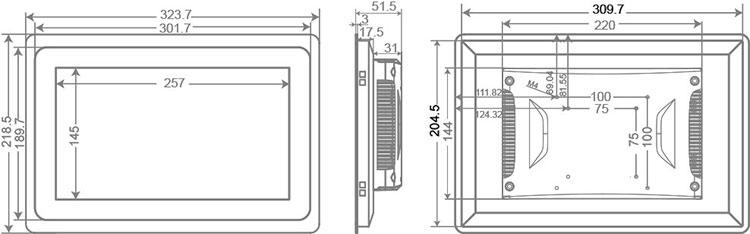

Dimensions (WxHxD):
323.7 mm x 218.5 mm x 51.5mm
Weight:
Approx. 2.2 kg
Certification:
CE, RoHS, FCC, REACH
Environmental conditions:
Operation: -10 °C to +60 °C, -20 °C to +70 °C (optionally customizable)
Storage: -20 °C to +70°C
95%, non-condensing
Operating system:
Windows® 10 IoT
Windows® 11 IoT
Options:
LTE
Packing list:
1 x device
1 x Mounting material
Tariff number:
8471 41 00
Manufacturer:
Wachendorff Prozesstechnik GmbH & Co. KG
| Article no. | Article description |
|---|---|
| PPC002-116A | 11.6 inch Industrial Panel PC Series-1A, aluminium housing, Intel Celeron |
| Accessories | |
| PPC-PWRCRD_01 | Mains cable / connection cable E+F CEE 7/7 to C13 1.5 m |
| PPC-PWRADAP_01_24VDC2.5A | External power supply unit for Celeron und Intel Core 6./7. Gen. Panel-PC, 230VAC to 24VDC with hollow connector and C14 plug |
| PPC-WALL-VESA-01 | VESA wall mount metal, 75 x 75, 100 x100, black, including screw accessory pack |
| PPC-Stand_01 | Industrial monitor/display stand, VESA 100x100, black |
| PPC-Stand_02 | Industrial monitor/display stand, VESA 100x100, silver |
