Power supply:

Hollow connector 5.5 x 2.5 mm: 12 VDC to 36 VDC
2 pin connector: 12 VDC to 36 VDC

Power consumption:

Typical power consumption: 18 W
Maximum power consumption: 48 W

Display:

21.5" TFT LCD

Resolution:

1920 x 1080 pixels

Aspect ratio:

16:9

Brightness:

300 cd/m²
1000 cd/m² (High Brightness)
800 cd/m² (High Brightness WT)

Colors:

16.7 million

Reading angle:

89/89/89/89 (L/R/U/D)

Touch screen:

capacitive touch

Glass hardness:

6H

Interfaces:

USB: RJ45-USB for touch
Display: 1x HDMI, 1x DVI, 1x VGA
Audio output: 3.5 mm jack

Housing:

Robust aluminum housing

Assembly:

VESA 100 x 100 and/or 75 x 75
Panel mounting

Protection class:

Front IP65

Weight:

approx. 5.56 kg

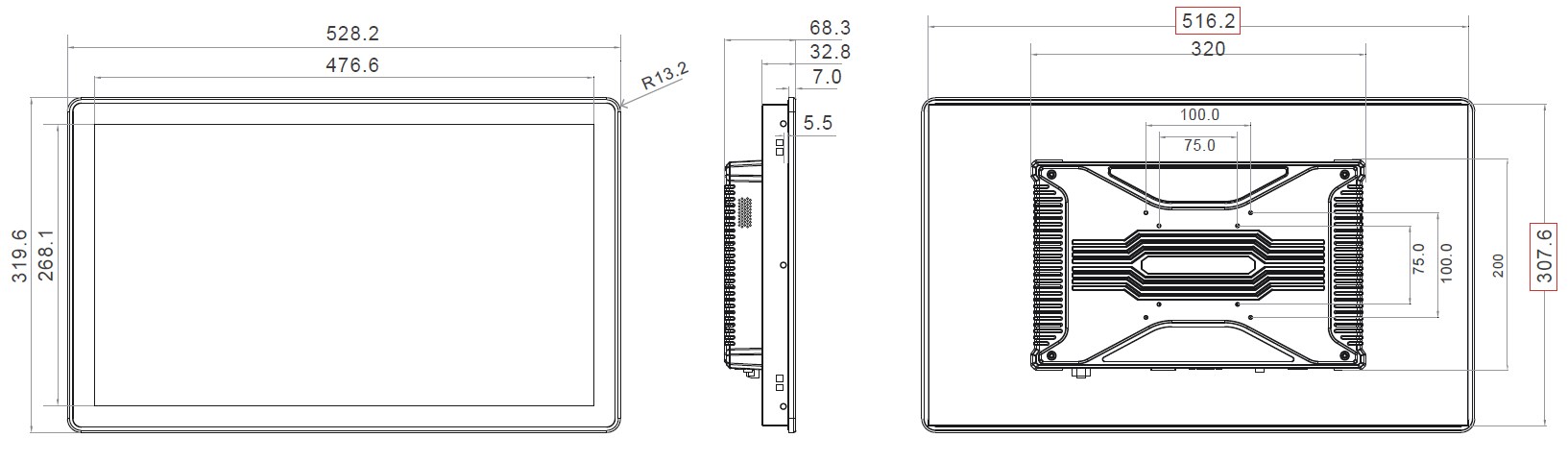

Dimensions (WxHxD):

528.2 mm x 319.6 mm x 68.3 mm

Ambient conditions:

Operation: -10 °C to +60 °C,
Optional WT: -20 °C to +70 °C
High Brightness WT: -20 °C to +70 °C
High Brightness : 0 °C to +50 °C
Storage: -20 °C to +70 °C
Up to 95 % r. h., non-condensing

Certifications:

CE
FCC Class A
CCC

Scope of delivery:

1 × Device
1 × Mounting Material
1 × RJ-45 to USB Cable
1 × VGA Cable (standard length: 1.5 m)

Customs tariff number:

85285210

Manufacturer:

Wachendorff Process Technology
