Power supply:

Hollow connector 5.5 x 2.5 mm: 12 VDC to 36 VDC
Screw terminal: 12 VDC to 36 VDC

Power consumption:

Typical power consumption: 18 W
Maximum power consumption: 48 W

Display:

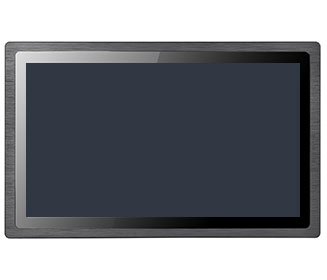

21.5" TFT-LCD

Resolution:

1920 x 1080 Pixel

Aspect ratio:

16:9

Brightness:

300 cd/m²
1000 cd/m² (High Brightness)
800 cd/m² (High Brightness WT)

Colours:

16,7 M.

Viewing angle:

89/89/89/89 (L/R/U/D)

Touchscreen:

capacitive touch

Glas hardness:

6H

Processor:

RK3399-Quad-Core Chip
Dual Core Cortex-A53 up to 1.4 GHz
Quad-Core Cortex-A72 up to 1.8 GHz

RAM:

4 GB DDR3 RAM

Storage:

Onboard 64 GB eMMC NAND Flash

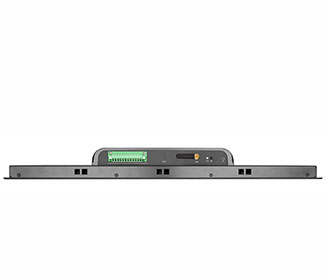

I/O-ports:

USB: 1x USB 3.0 Typ A, 1x USB 2.0 Typ A
Serial DB9: 1x RS-232
12-pin screw terminal:  1x RS-485, 1x RS-232, 1x TTL, 3x GPIO
Ethernet: 1x 10/100/1000 BaseT(X), RJ45,galvanically isolated
Display: 1x HDMI-output
Audio In-/output: 3.5 mm jack
Memory card slot: microSD-Slot
Sim card slot:  Standard SIM (without function as standard)
WLAN: 1x 802.11 a/b/g/n/ac/ax
Bluetooth: 1x Bluetooth 5.0

Housing:

Robust aluminium housing

Mounting:

VESA 75 x 75, VESA 100 x 100
Panel mount

Protection class:

IP65 at the front

Weight:

Approx. 5.8 kg

Dimensions (WxHxD):

557 mm x 345 mm x 63 mm

Environmental conditions:

Operation: -10 °C to +60 °C
Optional WT: -20 °C to +70 °C
High Brightness : 0 ℃ to +50 ℃
High Brightness WT: -20 °C to +70 °C
Storage: -20 °C to +70 °C
95 %, non-condensing

Certifications:

CE
FCC Class A
CCC

Operating system:

Android
Android + AutomationBrowser (standard, for SAIA visualisations on request)


Packing list:

1x device
1x mounting material

Tariff number:

84714100

Manufacturer:

Wachendorff Prozesstechnik
