Power supply:

Hollow plug 5.5 x 2.5 mm: 12 VDC to 36 VDC
Screw terminal: 12 VDC to 36 VDC

Power consumption:

Typical power consumption: 18 W
Maximum power consumption: 48 W

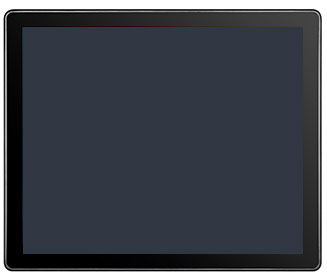

Display:

19.0" TFT LCD

Resolution:

1280 x 1024 pixels

Aspect ratio:

5:4

Brightness:

300 cd/m²
1000 cd/m² (High Brightness)

Colors:

16.7 million

Reading angle:

85/85/80/80 (L/R/U/D)

Touch screen:

capacitive touch

Glass hardness:

6H

Processor:

RK3399 quad-core chip
Dual Core Cortex-A53 up to 1.4 GHz
Quad-Core Cortex-A72 up to 1.8 GHz

RAM:

4 GB DDR3 RAM

Storage:

Onboard 64 GB eMMC NAND Flash

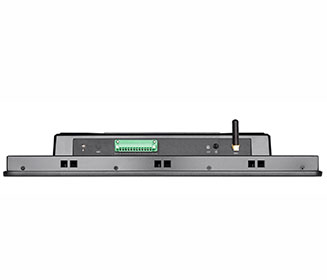

Interfaces:

USB: 1x USB 3.0 type A, 1x USB 2.0 type A
Serial DB9: 1x RS-232
12-pin screw terminal: 1x RS-485, 1x RS-232, 1x TTL, 3x GPIO
Ethernet: 1x 10/100/1000 BaseT(X), RJ45, galvanically isolated
Display: 1x HDMI output
Audio output: 3.5 mm jack
Memory card slot: microSD slot
Sim card slot: Standard SIM (without function as standard)
WLAN: 1x 802.11 a/b/g/n/ac/ax
Bluetooth: 1x Bluetooth 5.0

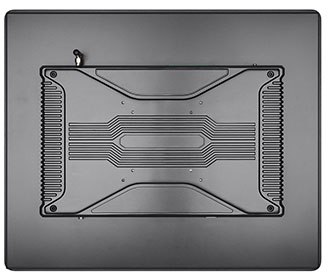

Housing:

Robust aluminum housing

Assembly:

VESA 100 x 100 and/or 75 x 75
Panel mounting

Protection class:

Front IP65

Weight:

approx. 5.7 kg

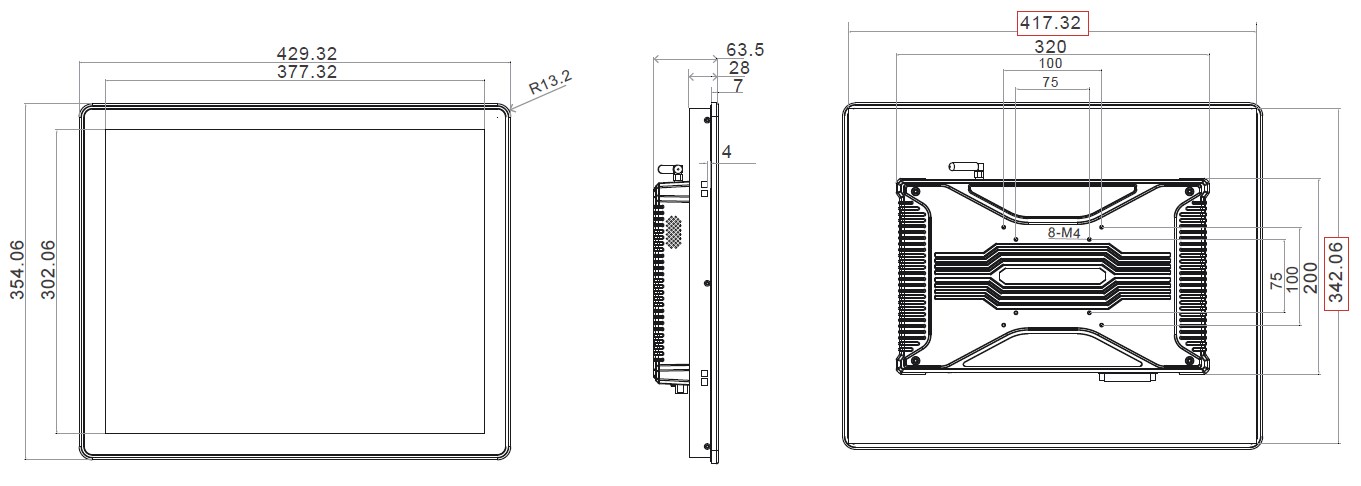

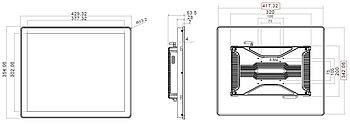

Dimensions (WxHxD):

429.32 mm x 354.06 mm x 63.5 mm

Ambient conditions:

Operation: -10 °C to +60 °C,
Optional WT: -20 °C to +70 °C
High Brightness: -30 °C to +85 °C
Storage: -20 °C to +70 °C
Up to 95 % r. h., non-condensing

Certifications:

CE
FCC Class A
CCC

Operating system:

Android
Android + AutomationBrowser (standard, for SAIA visualizations on request)

Scope of delivery:

1 x device
1 x mounting material

Customs tariff number:

84714100

Manufacturer:

Wachendorff Process Technology
