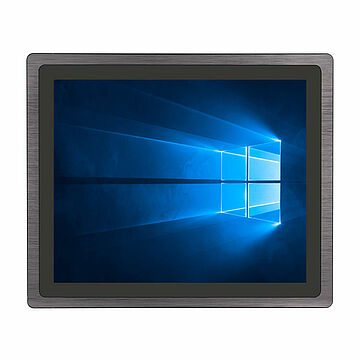

17.0 inch Panel PC Series-1B2
Intel®CoreTM i3 / i5 / i7 12th Gen.
17.0" TFT LCD, 1280 x 1024 pixels
Projected-capacitive, resistive or without touch
Processor: Intel®CoreTM i3 / i5 / i7 12th Gen.
IP66 die-cast aluminum housing
- 17.0" TFT LCD, 1280 x 1024 pixels
- Processor: Intel®CoreTM i3 / i5 / i7 12th Gen.
- Die-cast aluminum housing
- Flush frame design, IP66 front side
- Fanless cooling system
WACHENDORFF Series-1 Panel PC
The WACHENDORFF Series-1 industrial panel PCs are available in display sizes ranging from 10" to 23.8" and can be equipped with projected capacitive, resistive or no touch. The projected capacitive touch enables multi-touch operation with an appropriate operating system. If pressure-sensitive operation is required (e.g. with gloves), the resistive touch is the right choice. You can choose from a variety of different processors, from the energy-efficient Intel®Celeron® J4125 to a 10th generation Intel®CoreTM i7. Integrate up to 64 GB of RAM to meet the most demanding requirements. The front panels are absolutely flush with the die-cast aluminum housing. The housing is IP65 rated. The unique fanless thermal design of the die-cast aluminum housing enables effective temperature control.
Power supply:
Hollow connector 5.5 x 2.5 mm: 12 VDC to 36 VDC
2 pin connector: 12 VDC to 36 VDC
Power consumption:
i3 / i5 / i7 of the 6th and 7th gen. max. 95W
i3 / i5 / i7 of the 8th and 10th gen. max. 105W
Display:
17.0" TFT LCD
Resolution:
1280 x 1024 pixels
Aspect ratio:
5:4
Brightness:
300 cd/m²
1000 cd/m² (High Brightness)
Colors:
16,7 M
Reading angle:
85/85/80/70 (L/R/U/D)
Touch screen:
- Projected capacitive touch
- Resistive touch
- without touch
Glass hardness:
- 6H Projected capacitive touch
- 3H Resistive touch
- 7H without touch
Processor:
Intel® Core™ i3-1215U (4.4 GHz),
Intel® Core™ i5-1235U (4.4 GHz),
Intel® Core™ i7-1255U (4.7 GHz)
RAM:
Max. 32GB DDR4
SSD/HDD:
Max. 1 TB
Standard: M.2 NVMe
Optional: mSATA
Interfaces:
USB: 2 x USB 2.0 type A, 2 x USB 3.0 type A
Serial DB-9: 1x RS-232
12-pin screw terminal: 1x RS-485, 1x RS-232, 5x GPIO
Ethernet: 2x RJ-45 Gigabit Ethernet, galvanically isolated
Display: 1x HDMI, 1x VGA
Audio: 1x audio out, 3.5 mm jack
Sim Card Slot: Standard SIM (without function as standard)
WLAN: 1x 802.11 abgn/ac/d/e/i/h/w
Bluetooth: 1x Bluetooth 4.0
Expansion slots:
None
Housing:
Die-cast aluminum housing
Assembly:
VESA 75 x 75, VESA 100 x 100
Panel mounting
Protection class:
IP66 on the front

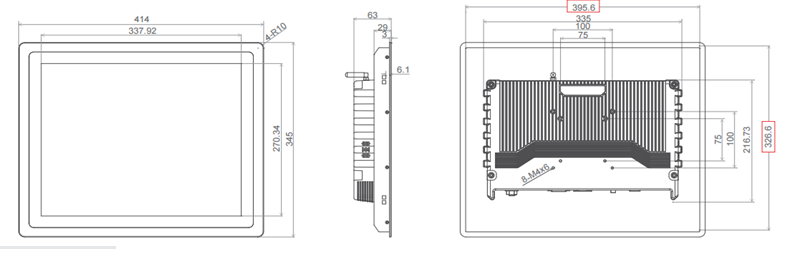

Dimensions (WxHxD):
414 mm x 345 mm x 63 mm
Weight:
approx. 5.0 kg
Certifications:
CE, RoHS, FCC, REACH
Ambient conditions:
Operation: -10 °C to +60 °C,
Optional WT: -20 °C to +70 °C
High Brightness: -30 °C to +85 °C
Storage: -20 °C to +70 °C
Up to 95 % r. h., non-condensing
Operating systems:
Windows® 10 IoT LTSC
Windows® 11 IoT LTSC
Options:
LTE
-20 °C to +70 °C (optionally customizable)
Scope of delivery:
1 x device
1 x Mounting material
1 x installation instructions
Customs tariff number:
8471 41 00
Manufacturer:
Wachendorff Prozesstechnik GmbH & Co. KG
| Article no. | Article description |
|---|---|
| PPC002-170B | 17.0 inch Industrial Panel PC Series-1B, aluminium housing, Intel Core |
| Accessories | |
| PPC-PWRCRD_01 | Mains cable / connection cable E+F CEE 7/7 to C13 1.5 m |
| PPC-PWRADAP_02_24VDC4A | External power supply unit for Intel Core 8./10. Gen. Panel-PC, 230VAC to 24VDC, hollow connector and C14 Stecker |
| PPC-PWRADAP_03_24VDC5A | External power supply unit for Intel Core 12. Gen. Panel-PC, 230VAC to 24VDC, hollow connector and C14 Stecker |
| PPC-WALL-VESA-01 | VESA wall mount metal, 75 x 75, 100 x100, black, including screw accessory pack |
| PPC-Stand_01 | Industrial monitor/display stand, VESA 100x100, black |
| PPC-Stand_02 | Industrial monitor/display stand, VESA 100x100, silver |
