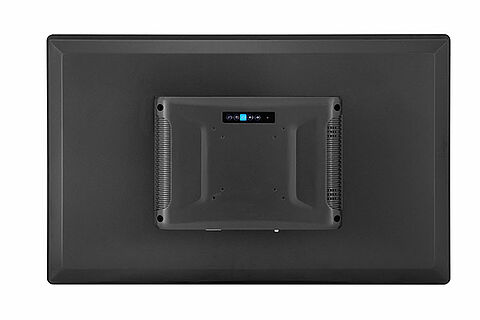

23.8 inch industrial display
This product has been discontinued.
If you have any questions, please contact your representative.
- 23.8" brilliant TFT-LCD graphic display, 1920 x 1080 pixels
- Robust aluminum housing, low installation depth
- High protection class IP65, flush-mounted design
- HDMI, DVI and VGA interface
The Series 1 industrial displays are available in sizes from 10.1" to 23.8" and can be equipped with projected capacitive, resistive or no touchscreen. Particularly noteworthy is the front frame, which is only 3 mm thick, enabling almost flush mounting in the panel cut-out.
The housings are IP65 rated on the front and have a very compact and robust design thanks to the specially designed aluminum housing. The low installation depth means that the displays can be used almost anywhere.
Power supply:
12 VDC to 36 VDC
Power consumption:
Power consumption: max. 30 W
Display:
23.8" TFT LCD
Resolution:
1920 x 1080 pixels
Aspect ratio:
16:9
Brightness:
250 cd/m²
800 cd/m² (High Brightness)
Colors:
16.7 million
Reading angle:
89/89/89/89 (L/R/U/D)
Touch screen:
capacitive touch
Glass hardness:
6H
Interfaces:
USB: RJ45-USB for touch
Display: 1x HDMI, 1x DVI, 1x VGA
Audio output: 3.5 mm jack
Housing:
Robust aluminum housing
Assembly:
VESA 100 x 100 and/or 75 x 75
Panel mounting
Protection class:
Front IP65
Weight:
approx. 7.16 kg
Dimensions (WxHxD):
606 mm x 376 mm x 67 mm
Ambient conditions:
Operation: -10 °C to +60 °C,
Optional WT: -20 °C to +70 °C
High Brightness : 0 °C to +50 °C
Storage: -20 °C to +70 °C
Up to 95 % r. h., non-condensing
Certifications:
CE
FCC Class A
CCC
Scope of delivery:
1 × Device
1 × Mounting Material
1 × RJ-45 to USB Cable
1 × VGA Cable (standard length: 1.5 m)
Customs tariff number:
85285210
Manufacturer:
Wachendorff Process Technology
