Surface-mounted housing for Series 1 WebPanel
10.1" to 21.5"
For Wachendorff WebPanel WPC series 1
- Surface-mounted housing in a modern design
- Suitable for all Series 1 wide-screen devices from 10.1" to 21.5"
- Designed for an external 230 VAC supply
The surface-mounted housings for the WebPanel are made of powder-coated sheet steel and are precisely matched to the WebPanel. This ensures the smallest possible wall structure.
They are designed for a 230 VAC supply.
The smart design enables very quick wall mounting.
They are suitable for WebPanels from 10.1" to 21.5".
* Not included in the scope of delivery: Power supply unit with IEC plug
Mounting:
Surface mounting
Material:
Sheet steel powder-coated RAL 7016
Galvanised sheet steel rear panel
Anodised aluminium corner profiles
Dimensions (DxWxH):
IPC-WPCAUFP-101-24: 60x320,4x220,4 mm
IPC-WPCAUFP-116-24: 60x355,4x250,4 mm

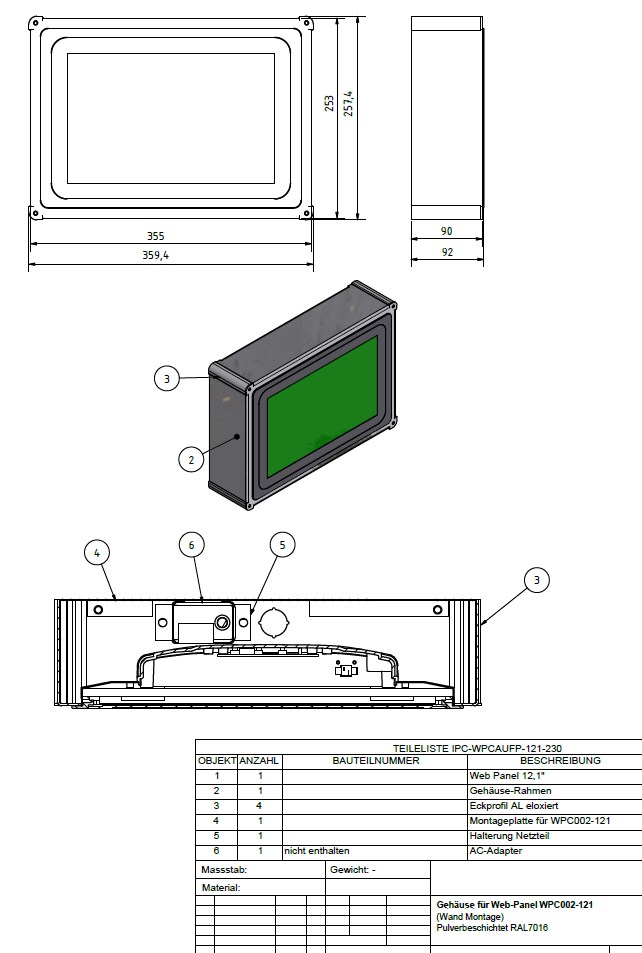

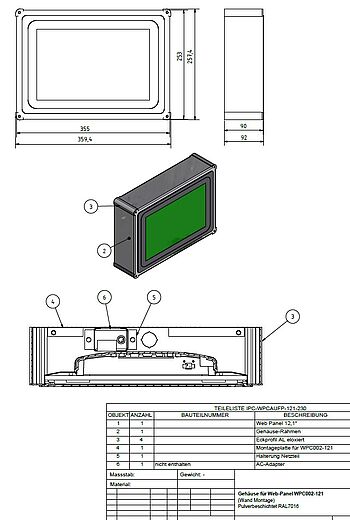

IPC-WPCAUFP-121-24: 60x359,4x257,4 mm

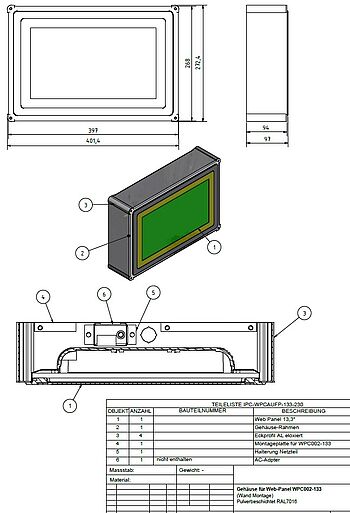

IPC-WPCAUFP-133-24: 64x401,4x272,4 mm

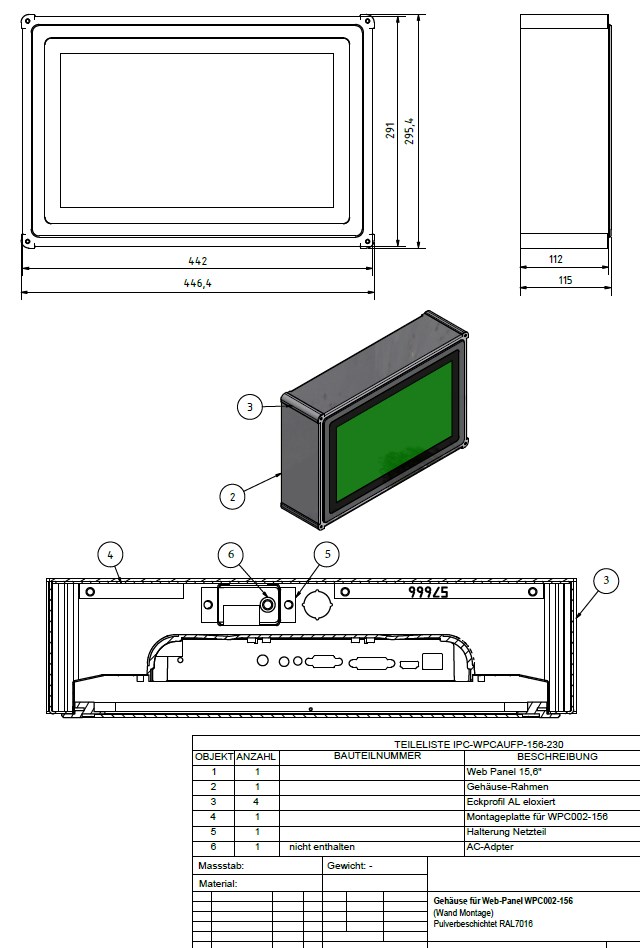

IPC-WPCAUFP-156-24: 82x446,4x295,4 mm
IPC-WPCAUFP-215-24: 70x585,4x373,4 mm
Packing list:
Housing
Ethernet socket + connection cable in the housing from the socket to the web panel
* No part of the scope of delivery: Power supply with cold device plug
Tariff number:
84733080
| Article no. | Article description |
|---|---|
| IPC-WPCAUFP-101-230 | Housing for 10.1’ WebPanel |
| IPC-WPCAUFP-116-230 | Housing for 11.6’ WebPanel |
| IPC-WPCAUFP-121-230 | Housing for 12.1’ WebPanel |
| IPC-WPCAUFP-133-230 | Housing for 13.3’ WebPanel |
| IPC-WPCAUFP-156-230 | Housing for 15.6’ WebPanel |
| IPC-WPCAUFP-215-230 | Housing for 21.5’ WebPanel |
| WPC-PWRADAP_24VDC2.5A | External power supply unit for WebPanel, 230 VAC to 24 VDC with hollow connector and C14 plug |
| PPC-PWRCRD_01 | Mains cable / connection cable E+F CEE 7/7 to C13 1.5 m |
